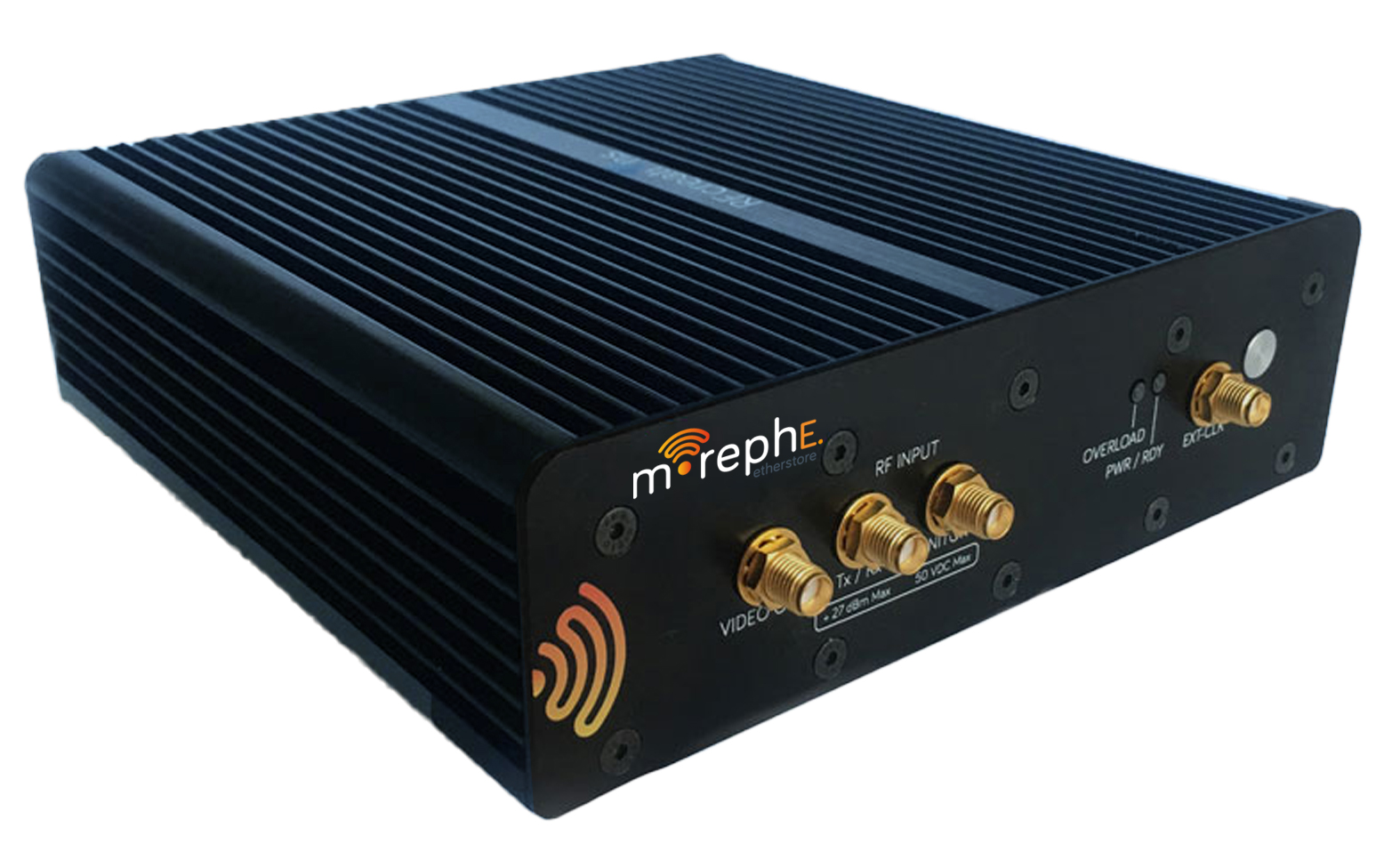

RF record & playback option for the moreph30 hardware platform

Download product brief

Record and playback over 3 hours of the entire 2.4GHz ISM band. Replay any section of the entire recording at your convenience. With dual control options, either via a GUI or a comprehensive Python library it will become your default reference RF test environment generator, Exactly what you need for RF site surveys, spectrum planning, interoperability, and receiver testing. Due to the moreph SDR at the core you can upgrade morephE to also be a RF- PHY Layer Tester, a blueSPY Protocol Analyser, or both at any time

Key features.

Create reference rf enviroments:

  • Record cluttered RF environments and reproduce in lab
  • Real world environment testing i.e.: airports and railway stations
  • Reproducible interference scenarios.
  • Interoperability testing.
  • 3 hours and 40 minutes of storage.



Test scenarios for bt devices:

  • Defined level of interfering signal.
  • Playback multiple BT/iIFi signal simultaneously.



Advanced capabilities

  • Replay generated waveforms (matlab) vector signal generator
  • Record and transfer to host computer and analyser in any package.
  • AUTONOMOUS mode – Execute test scenarios independently of any host.



Upgradable with applications

  • LE, BR/EDR, 802.15.4 and Qualcomm QBHSL RF-PHY Test applications.
  • Channel Sounding RF- PHY Test.
  • WiFi Traffic Generator.
  • blueSPY Protocol Analyser (Sniffer).

Applications.

  • Etherstore Application for record and playback
  • The RF environment analyser application for the morephE can analyse captured files to:
    • Generate a score indicating how challenging the environment is for Bluetooth devices to operate in.
    • Generate a clear channel assessment for Bluetooth devices.
    • Generate a clear channel assessment for WiFi devices.
  • Bluetooth BR/EDR RF-PHY Tester (Development and Production Options).
  • Bluetooth BLE RF-PHY Tester (Development and Production Options).
  • Bluetooth Channel Sounding RF-PHY Tester.
  • 802.15.4 RF Tester.
  • Qualcomm QBHSL RF-PHY Tester.
  • Bluetooth LE Advertise and scan simulator.
  • WiFi traffic generator.
  • blueSPY Protocol Analyser Options (Sniffer).

FAQ

There are 2 output file formats supported for recordings, “Volts” and “Raw”. ”Volts” returns the file stored in 32-bit floating point format, with the correction filter applied and scaled to volts across 50Ω at the input to the Etherstore. “Raw” returns the raw 12-bit signed ADC samples.
No, the morephE can operate in autonomous mode. The RF environment application plus the control script can run from a USB drive. When the unit powers up, the application will launch and read in the control script. The script may direct the application to either play back an existing file or start a new recording.
Files can be downloaded from the host to the Etherstore. These may either be files previously recorded by the Etherstore, or scenarios which a user has generated.
This is simple, it will need to be returned to us for a hardware update and then you download the Etherstore RF environment application.
